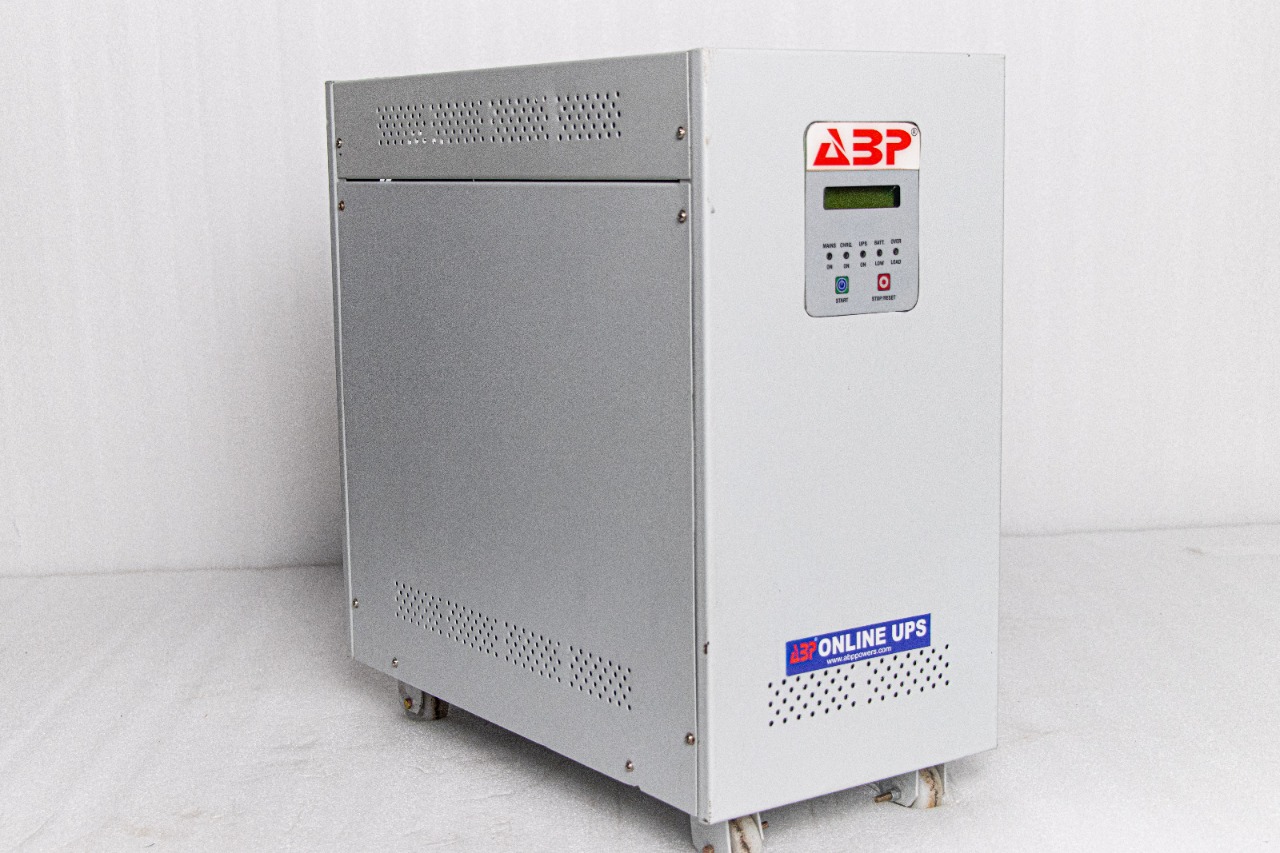

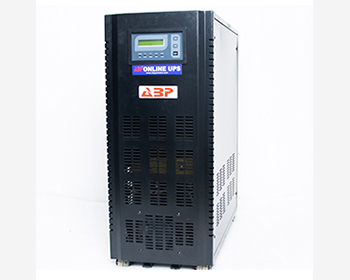

online ups

Power is your Business Life Line. The more you have the better for your business growth and productivity and losing it may prove disastrous for your business. So, for uninterrupted power security and performance preserve it with ABP online ups system. Our goal of zero defects and total customer satisfaction makes us the preferred supplier for many major companies in the electronics and information industries. At, our quality is measured by our products.

Our sophisticated technology has enable us to cater to varied needs of power distribution and backups, we provides a complete line of power electronics products. These include Online UPS up to 4000kva, battery chargers, Solar UPS System, Servo Stabilizer, Solar Inverters, and AC/DC Convertor.

Moreover our vast industry experience and our presence have enabled us to offer our technologically advanced power solutions as per the requirements of our customer .As we lay considerable efforts to study the requirements and provide solution through continuously upgraded product by our continual research and development so as to offer our client.

Major Application

  • Information Technology –Data Centers, Servers Networking.
  • Telecommunication - mobile, Wireless and others.
  • Industrial Automation, Process Control.
  • Digital Mini Labs, image processing and per- press.
  • Medical equipments – MRI, CT Scan Cath Lab, Doppler and others
  • Embroidery Machines, Laser Cutting Machines/Non – vovan fabric Bag Making Machines
  • Braking Insurance and Financial Services
  • Satellite Up linking and Earth Stations
IGBT Based Inverter and Rectifier

High Switching Frequency fir maximum system efficiency, Minimum Harmonics, Fast Transient Response and increased battery life.

Digital Singal Processing

ABP UPS is fully Digital adopting a Signal Processing Unit that integrated all power stages as well as control functions. The system uses only 2 cards as compared to a large number of control cards used in conventional UPS Systems. Single Processing unit increases system through increases reliability.

Isolation Transformer For Grounding Problems

All ABP UPS models incorporate Isolation Transformer at the output of the UPS to attenuate problems arising out of poor input grounding and leakage voltage in natural.
Optional Add ons

include SNMP Network Protocol, RS -232 Communication Port, Wall - mounted Remote Monitoring Panel (RMP) Matching Battery Cabinets

Technical Specification

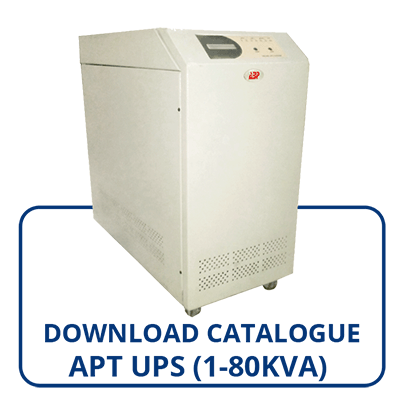

MODEL AHF AHX AEH3X  APT
RATING 1KVA-10KVA 5KVA-30KVA 10KVA-160KVA  1KVA-80KVA
TECHNOLOGY   True Online Double Conversion PWM IGBT Based
INPUT
Input Phase 1ph   1ph/3ph   3ph      1ph/3ph
Input Voltage Range
Single Phase 160V-280VAC
Three Phase                                                     400 VAC 3 Phase +_20%
Frequency 50 HZ +/-10%
Power Factor >0.97     >0.9  >0.9     >0.9(Optional)
OUTPUT
Output Phase 1ph 1ph/ 3ph  1ph/3ph
Output Voltage Range
Single Phase 220/230VAC+_1%
Three Phase 400/415 VAC +_1% - 3Phase & Natural
Power Factor >0.7  >0.8  >0.8  >0.8(Optional)
Efficiency >90%   >90%  92-94% >90%
Crest Factor 3:1
Wave From Sine wave
Over Lode 100%Countinuous, 125-150%-30Sec,>150%-10Sec
Static/Manual Bypass Static Bypass Available/Manual Bypass Optional
BATTERIES
DC Voltage 36V-192V 192-384V  348-528V 48384V
Charger Capacity 4Amp 10Amp upto40Amp upto40 Amp
Extended
INTERFACE COMMUNICATION
Standard Rs232
Optional SNMP
ISOLATION TRANSFORMER N/A Yes Available
REDUNDANCY Above3KVA Available hot standby
OTHERS
Display (Imp. Parameters) LED/DIGITAL    LCD LCD LCD
Operation with DG   Compatible with DG power Source
Operating Temp/humidity  0-40 ºC-95 %( None condensing)
Remote Operation   Remote on/off control panel (optional)
OPTIONAL
IGBT Rectifier   Available
High Input Power factor Up to 0.99 available
High Output Power factor  Unity
Wide Input Range  Upto 0.30%
3Phase Output    200/220 VAC Phase to phase
All specifications are subjects to change without prior notice
